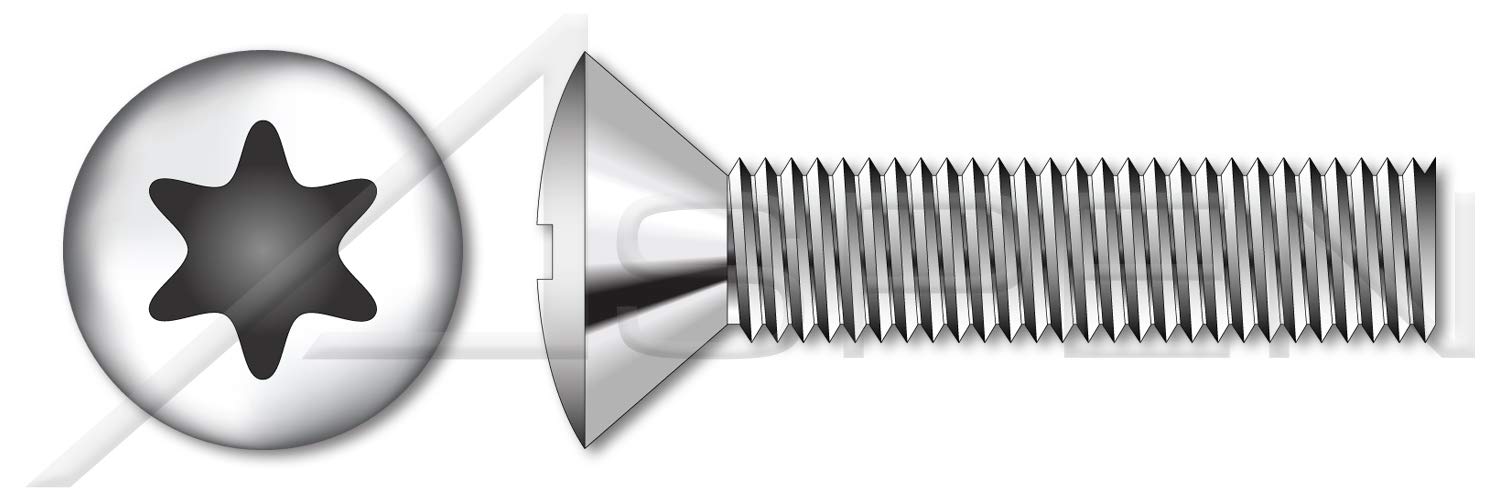

ISO 14584 formerly referred to the DIN 966 specification.Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.A 6-lobe recess is also known as a hexalobular internal drive.Oval countersunk head screws are also known as raised countersunk head screws.A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.Stainless steel significantly improves resistance to tarnishing or corrosion.Diameter (Nominal): M3Thread Pitch: 0.5Diameter (Dimension): 3mmLength (Nominal): 6mmThread Length: 4.35mmRecess Size: T10Head Diameter: 5.5mmHead Diameter (Minimum): 5.2mmHead Diameter (Maximum): 5.5mmHead Height, Overall: 1.65mmHead Dome Height: 0.7mmProduct Class: Externally Threaded FastenersOrder: Machine Thread FastenersCategory: Machine ScrewsSystem of Measurement: MetricBrand: Aspen Fasteners®Head Style: Oval Countersunk HeadHead Style Detail: 90 Degree CountersinkDrive Style: 6Lobe DriveDrive Detail: Torx® Generic AlternativeThread Length: Full ThreadThread Direction: Right-Hand ThreadMaterial: Stainless SteelMaterial Grade: A2 Stainless SteelCoating: UncoatedStandards and Specifications: ISO 14584
